Compatible with sound modules and amplifier code: 9368, 9368.1, 9368.7 and 9335.1
With broadband characteristics
With screw terminals
Rated output: 6 W (RMS)
Frequency response: 70 - 10.000 Hz
Impedance: 16 Ohm

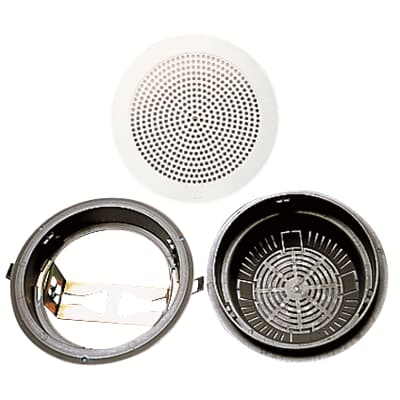

Flush mounted installation with 9399 mounting box or 9399.1 mounting ring
Embellishing grid code: 9399.2Learn More
Power supply through 9368, 9368.2 or 9368.7 modules
Max. consumption: 200 mA
Stand-by consuption: 0,4W
Bluetooth receiver: Bluetooth® v2.1 2.4GHz IEEE 802.15.1
USB connector: for MP3 and WAV files. Max. consuption of the connected device: 100 mA @5Vdc
Input: 1x mini-jack stereo 3,5mm
Output: 1x mini-jack stereo 3,5mm
Cover plate code: 8568.3, N2268.3, 8468.3, 8268.3 & 5568.3Learn More
230 - 127 V ; ±15 % ; 50 - 60 Hz.
Maximum consumption: 15 mA.
Required module for the control of the ceiling module 9368.1.
Connection between modules 9368.1 and 9368.2 realised wireless.
Module 9368.3 optional to provide Bluetooth connection, USB outlet and analogue input and output with mini-Jack (additional wiring necessary).
Gang ref. 8X68Learn More
Rated voltage: 127-230 Vac ± 15%; 50-60 Hz
Max. consumption: 15 mA
Stand-by consuption: 0,5W
To control 9368.1 module (1 remote control for each module)
Wireless connection between moles 9368.1 and 9368.2 (ZigBee 2.4GHz IEEE 802.15.4)
Optional: auxilary module 9368.3 for I/O (1 mini-jack stereo input & 1 mini-jack stereo output) and USB connection functions. In case of using 9368.3 module, the connection between modules 9368.1 and 9368.2 must be wired (3 wires)
Cover plate code: 8568, N2268, 8468, 8268 & 5568Learn More
